Apa Itu OCPI?

OCPI stands for Open Charge Point Interface. It is an opensource protocol that enables the exchange of information between electricvehicle (EV) charging stations, emobility service providers (EMSPs), and other stakeholders in the charging ecosystem. By standardising how data such as session details, tariffs, and status updates are shared, OCPI makes it possible for drivers to use any compatible charger using a single account, while operators can manage their networks more efficiently.

Why OCPI Matters

The rapid growth of electric mobility creates a need for seamless roamingjust as mobilephone users can switch between networks without changing SIM cards. OCPI provides the roaming agreement for EV charging, ensuring that:

• Drivers can locate, start, and pay for charging at any participating station.
• Operators can share usage data and settle payments without building custom integrations.
• Utilities gain insight into load patterns for better grid management.

Core Concepts

Roles

Key Modules

• Locations Information about each charger: address, connectors, capabilities, and status.
• Tariffs Pricing rules, including timeofday rates, energybased fees, and extra services.
• Sessions Realtime data on each charging transaction: start/stop time, energy delivered, and cost.
• CPOEMSP Commands Remote actions such as starting/stopping a charge or reserving a connector.

How OCPI Works

OCPI operates over HTTPS using a RESTlike API. Both parties expose a set of endpoints; the direction of data flow is defined by the role (CPO EMSP). A typical workflow looks like this:

1. The CPO publishes Location data, allowing the EMSP to display available chargers in its app.
2. An EV driver selects a charger, and the EMSP sends an Authorize request to the CPO.
3. The CPO confirms the drivers eligibility and unlocks the connector.
4. During charging, the CPO streams Session updates to the EMSP.
5. When the session ends, the CPO sends a final Session record, and the EMSP handles billing.
6. Both parties periodically exchange Tariff updates to keep pricing current.

Version History

OCPI was first released in 2015. Since then, several versions have been published, each adding features and improving security:

• v1.0 (2015) Basic location, tariff, and session exchange.
• v2.0 (2017) Introduced token management, more detailed status codes, and improved authentication.
• v2.1 (2020) Added support for reservations, multitariff handling, and optional hub architecture.
• v2.2 (2023) Enhanced security with OAuth2, better error handling, and optional fields for future extensions.

Benefits for Stakeholders

For Drivers

• One account works across many networks.
• Transparent pricing displayed before charging.
• Realtime status (available, occupied, outoforder).

For Operators

• Reduced integration cost a single API replaces multiple proprietary ones.
• Faster onboarding of new partners.
• Clear settlement process based on standardized session records.

For Grid Managers

• Aggregated load data enables demandresponse programs.
• Better forecasting of peak charging periods.

Getting Started with OCPI

Organizations interested in adopting OCPI can follow these steps:

1. Read the Specification The latest version is available on the official GitHub repository.
2. Choose a Role Decide whether you will act as a CPO, an EMSP, or a hub.
3. Implement the API Use existing opensource libraries (e.g., ocpi-lib for Node.js or ocpi-java for Java) or develop a custom solution.
4. Set Up Security Configure TLS certificates and OAuth2 tokens as described in the security chapter.

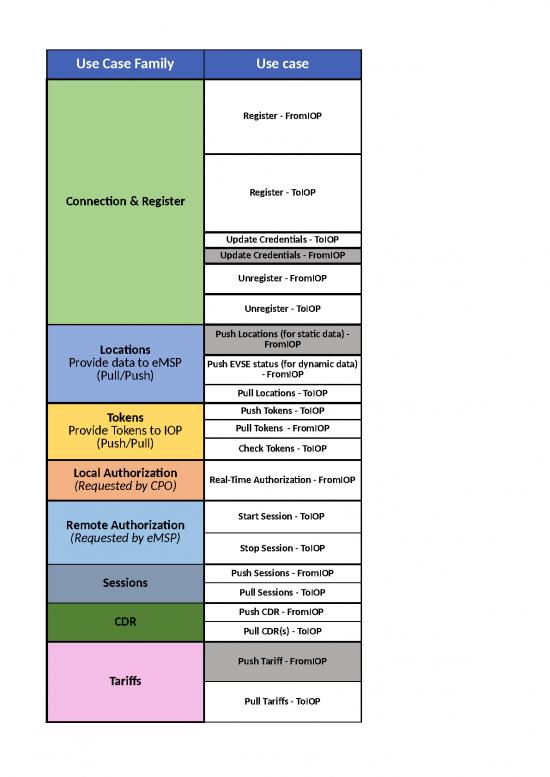

5. Test Interoperability Join a compliance test program or exchange test data with a partner.
6. Go Live Enable realtime data exchange and begin processing transactions.

Common Misconceptions

• OCPI is only for Europe. While it originated in European markets, the protocol is global and has adopters in North America, Asia, and Oceania.
• OCPI replaces OCPP. OCPP (Open Charge Point Protocol) governs communication between a charger and its management system, whereas OCPI handles communication between different business entities. They complement each other.
• OCPI is a proprietary product. It is an open, royaltyfree standard maintained by an industry consortium.

Future Outlook

As EV adoption accelerates, the need for seamless crossnetwork charging will become more critical. Upcoming enhancements being discussed by the OCPI community include:

• Support for ultrafast DC chargers (up to 350kW).
• Integration with smartgrid APIs for realtime load balancing.
• Standardised data fields for carbonintensity and renewableenergy sourcing.

These developments aim to keep OCPI at the heart of a truly interoperable, sustainable charging ecosystem.
