BCA Requirements for Imported Coarse and Fine Aggregates

When importing coarse and fine aggregates for construction projects, compliance with Building and Construction Authority (BCA) standards is mandatory to ensure structural integrity and long-term durability. These materials serve as the primary skeleton of concrete, and their physical and chemical properties directly influence the final performance of the built environment.

Overview of Regulatory Compliance

The BCA establishes rigorous guidelines for imported aggregates to ensure they meet the specific needs of the local construction climate. Importers must ensure that their products are tested against international or equivalent standards (such as SS EN 12620) to guarantee that they are suitable for use in structural concrete. The primary objective is to control variables such as moisture content, grading, impurity levels, and mechanical strength.

Physical Property Requirements

To be approved for use, coarse and fine aggregates must undergo a battery of physical tests. These include:

• Particle Size Distribution (Grading): Aggregates must follow a strictly defined grading envelope to ensure that the concrete mix achieves optimal density and workability. Inconsistent grading can lead to segregation or high water demand.
• Particle Shape and Texture: For coarse aggregates, the flakiness index and elongation index are measured. Excessively flaky or elongated particles reduce the flowability of fresh concrete and can create weaknesses in the hardened matrix.
• Mechanical Strength: The Aggregate Crushing Value (ACV) and the Los Angeles (LA) Abrasion test are used to evaluate the hardness and resistance to impact. Aggregates must demonstrate sufficient strength to withstand the structural loads they will eventually support.
• Water Absorption and Density: Testing for bulk density and water absorption is critical. Aggregates that absorb too much water can negatively impact the water-cement ratio of a concrete mix, thereby compromising its strength.

Chemical and Impurity Standards

Chemical stability is as vital as physical strength. Imported materials must be free from harmful substances that could lead to structural degradation over time.

• Chloride and Sulfate Content: Strict limits are placed on chloride and sulfate levels to prevent the corrosion of steel reinforcement bars embedded within the concrete. High levels can lead to early structural failure.
• Organic Impurities: Fine aggregates must be tested for the presence of organic matter, which can interfere with the setting time of cement and weaken the bond between the mortar and the aggregate.
• Alkali-Silica Reactivity (ASR): This is a critical assessment for imported materials. ASR is a deleterious reaction between the reactive silica in aggregates and the alkalis in the cement. If left unchecked, this reaction can cause internal expansion and cracking of the concrete structure.

Testing Procedures and Documentation

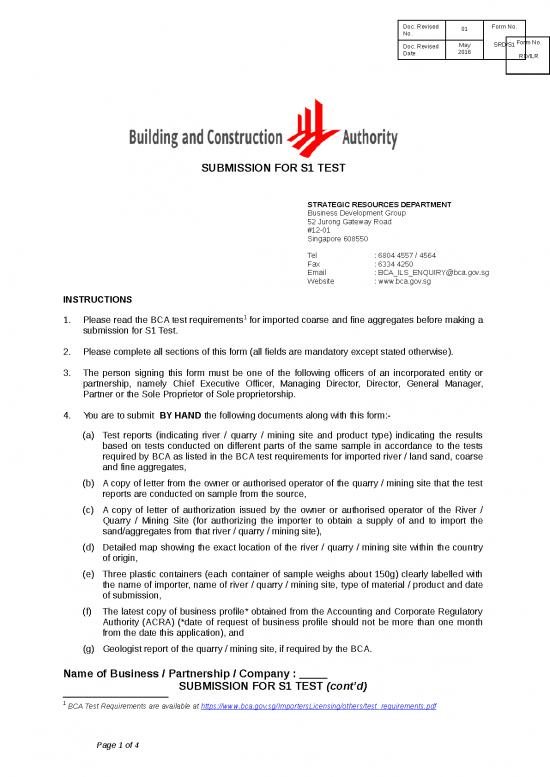

Importers are expected to provide comprehensive laboratory test reports from accredited bodies. These reports must be current and reflect the specific source of the material. Key procedural requirements include:

• Source Verification: Detailed documentation identifying the quarry or dredging location.
• Sampling Consistency: Samples must be taken systematically to ensure they are representative of the actual shipment being imported.
• Independent Audits: The BCA may request verification through third-party independent testing labs to ensure that the materials delivered to the site align with the submitted test certificates.

Importance of Ongoing Quality Control

Quality assurance does not end at the port of entry. Once the aggregates are imported and stockpiled, onsite quality control is essential. Segregation during transportation, contamination from ground contact, and moisture fluctuations due to environmental exposure must be managed through proper storage and regular site-based testing. Failure to maintain these standards can lead to rejection of materials and costly delays in construction schedules.

By adhering to these stringent requirements, project stakeholders contribute to a safer construction industry and ensure that the infrastructure built today remains resilient and durable for future generations.
