Part Submission Warrant (PSW): An Overview
In the world of manufacturing, particularly within the automotive and aerospace industries, quality assurance is paramount. The Part Submission Warrant (PSW) serves as the primary document that summarizes the results of the Production Part Approval Process (PPAP). It acts as the formal declaration by a supplier that a part, component, or assembly meets all customer requirements and is ready for production.
What is a PSW?

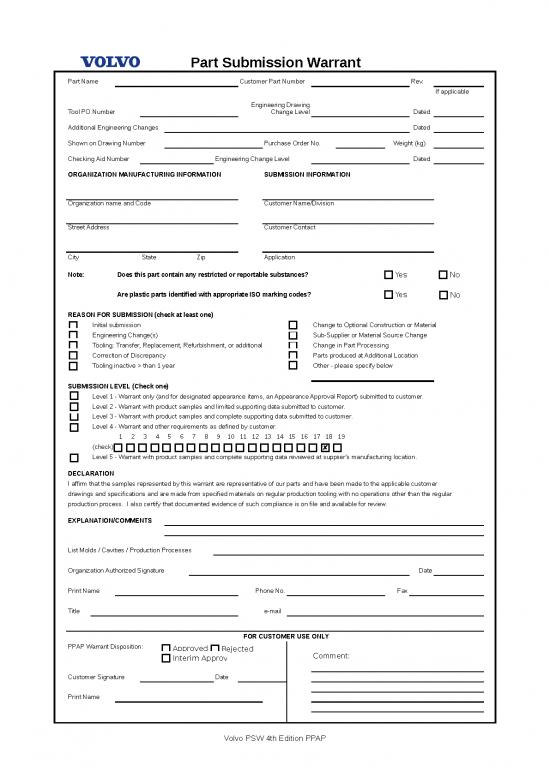

The PSW is a standardized form used to communicate the outcome of the PPAP process. When a supplier submits a PPAP package to a customer, the PSW serves as the cover sheet. It provides the customer with a snapshot of the technical documentation, testing results, and dimensional analysis associated with the part. Essentially, it is a formal statement of compliance, signed by an authorized representative of the supplier.
Why is the PSW Essential?
The primary purpose of the PSW is to provide assurance to the customer that the suppliers manufacturing process can consistently produce parts that meet specified design records and engineering change documents. It reduces the risk of quality failures by ensuring that all necessary validationssuch as material testing, dimensional checks, and capability studieshave been completed and reviewed.
- Design records and engineering change documents.
- Process flow diagrams and Control Plans.
- Dimensional results (measurement of the part against prints).
- Material and performance test results.
- Initial process capability studies (Cpk/Ppk values).
- Measurement System Analysis (MSA) or Gage R&R.
The Submission Levels
Customers usually define the level of documentation required for the PSW submission. While there are typically five levels, Level 3 is the most common default for production parts. These levels dictate how much documentation the supplier must provide to the customer versus how much they must keep on file at their own facility. The PSW itself must always be included regardless of the submission level.
The Signing Process and Responsibility
The PSW is not merely a formality; it is a legal and quality-driven commitment. When a supplier representative signs the PSW, they are certifying that:
- The parts were produced at the designated production site.
- The parts were produced using the approved production tools, materials, and processes.
- All inspection and testing requirements were met.
- Any deviations or non-conformances have been identified and formally dispositioned.
Managing Changes After Approval
Once a PSW is approved, the manufacturing process is "locked." Any significant changessuch as moving production to a different facility, changing raw material suppliers, or modifying toolingrequire the supplier to notify the customer. In many cases, a new PPAP package and a new PSW submission are required to validate that the changes have not adversely affected the quality of the product.
Conclusion
The Part Submission Warrant is the cornerstone of the automotive quality management system. It bridges the gap between engineering design and mass production, ensuring that all stakeholders have a documented, signed agreement that the parts manufactured will perform as intended. By maintaining rigorous standards throughout the PSW process, manufacturers can maintain high levels of quality, minimize waste, and ensure the safety and reliability of their end products.
